Caratteristiche tecniche :
Applicazioni :
Temperatura di impiego : – 30°C a + 100°C

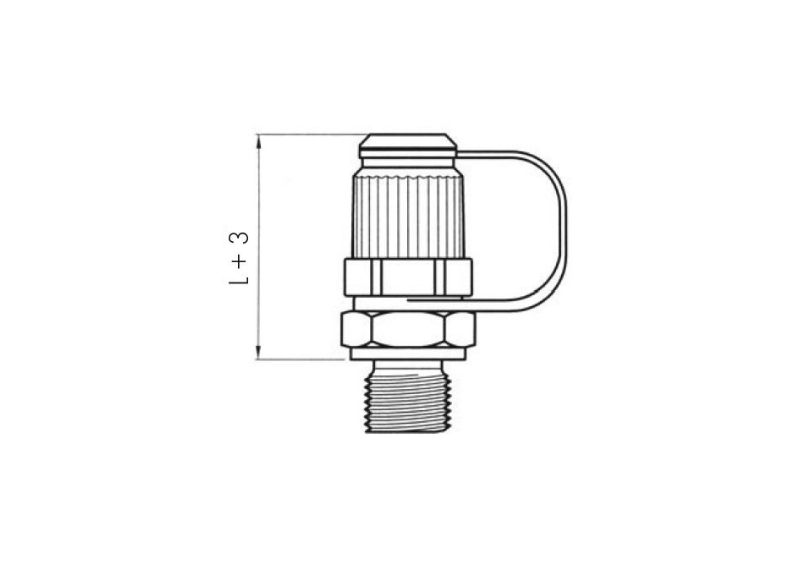

Codice | Filettatura | Tipo di tenuta | p max | Quote
mm |
||
---|---|---|---|---|---|---|
L | Ch. | J±0,2 | ||||
EH0MPR10M | M 10 × 1 | FORM A | 400 bar | 35 | 17 | 8 |
EHMPR140M | 1/4″ GAS | 400 bar | 35 | 19 | 12 | |
EH0MPR18K | 1/8″ GAS CON. | FORM C | 400 bar | 33 | 17 | 8 |
EH0MPR14K | 1/4″ GAS CON. | 630 bar | 33 | 17 | 12 | |
EH0MPR14N | 1/4″- 18 NPTF | 630 bar | 66 | 17 | 14 | |
EHMPR10R | M 10 × 1 | FORM E | 400 bar | 35 | 17 | 8 |
EH0MPR12OR | M 12 × 1.5 | 630 bar | 35 | 17 | 12 | |
EH0MPR14M | M 14 × 1.5 | 630 bar | 35 | 19 | 12 | |
EHPA09M16 | M 16 × 1.5 | 630 bar | 35 | 22 | 12 | |
EHMPR18OR | 1/8″ GAS | 400 bar | 35 | 17 | 8 | |
EHMPR08OR | M 8 × 1 | FORM F | 250 bar | 35 | 17 | 8.5 |
EHMPR10OR | M 10 × 1 | 630 bar | 35 | 17 | 9.5 | |
EH0MPR14MISO6149-1 | M 14 × 1.5 | 630 bar | 35 | 19 | 12 | |
EHMPR716R | M 7/16″ UNF | 630 bar | 35 | 17 | 11 | |
EHMPR916R | M 9/16″UNF | 630 bar | 35 | 19 | 12 |

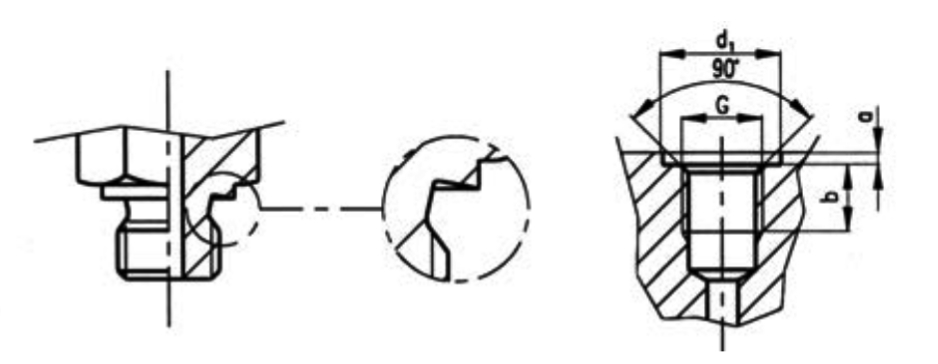

FORM A | Img | G | a | b | d1 | Nm |
---|---|---|---|---|---|---|
Tenuta con guarnizione metallica |
M 10 × 1 | 1 | 8 | 20 | – | |
1/4″ GAS | 1,5 | 12 | 25 | – |

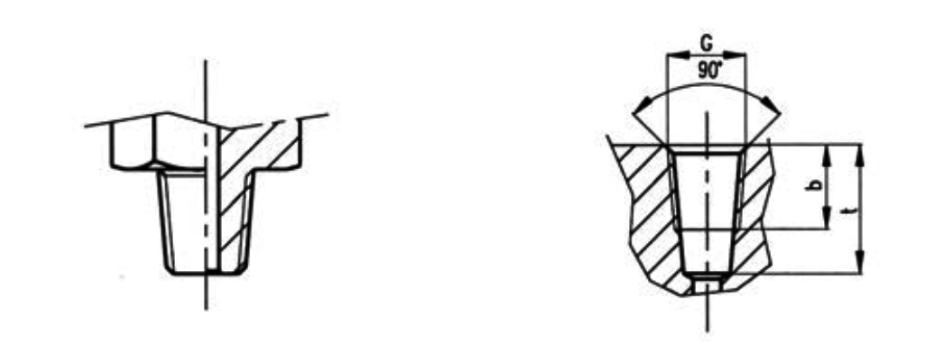

FORM C | Img | G | b | t |
---|---|---|---|---|
Tenuta meccanica | 1/8″ GAS CON. | 5,5 | 8,5 | |
1/4″ GAS CON. | 8,5 | 12,5 | ||
1/4″- 18 NPTF | – | 16,4 |

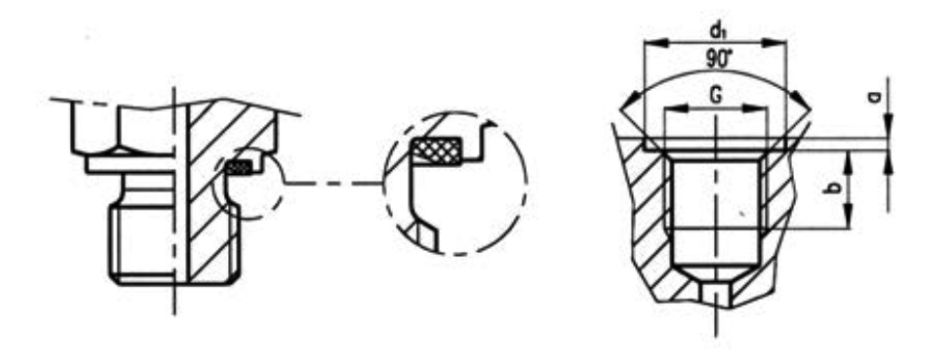

FORM E | Img | G | a | b | d1 | Nm |
---|---|---|---|---|---|---|
Tenuta con guarnizione piana | M 10 × 1 | 1 | 8 | 15 | 20 | |
M 12 × 1.5 | 1,5 | 12 | 18 | 40 | ||
M 14 × 1.5 | 1,5 | 12 | 20 | 55 | ||
M 16 × 1.5 | 1,5 | 12 | 23 | 70 | ||
1/8″ GAS | 1 | 8 | 15 | 20 |

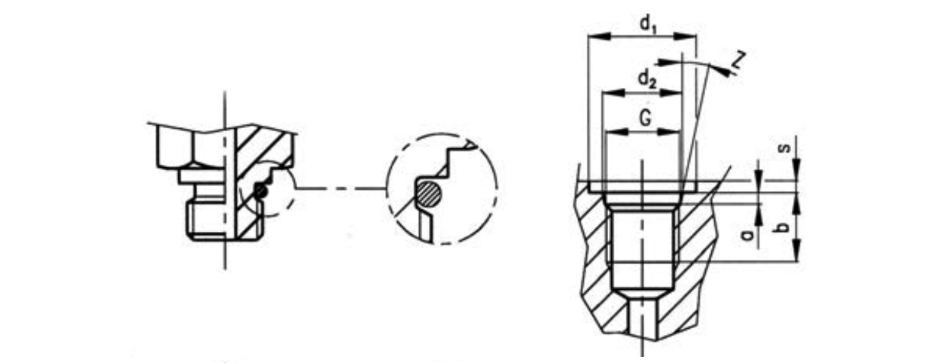

FORM F | Img | G | a | b | d1 | d2 | s | z | Nm |
---|---|---|---|---|---|---|---|---|---|
Tenuta con guarnizione O-ring | M 8 × 1 | 1,6 | 10 | 14 | 9,1 | 1 | 12° | 10 | |
M 10 × 1 | 1,6 | 10 | 16 | 11,1 | 1 | 12° | 20 | ||
M 14 × 1.5 | 2,4 | 11,5 | 21 | 15,8 | 1,5 | 15° | 45 | ||
M 7/16″ UNF | 2,4 | 11,5 | 21 | 12,4 | 1,6 | 12° | 20 | ||
M 9/16″UNF | 2,5 | 12,7 | 25 | 15,7 | 1,6 | 12° | 35 |
Tutte le informazioni fornite con il presente catalogo si basano sulle nostre conoscenze e competenze attuali. Possono essere variate o modificate in qualsiasi momento e senza alcun preavviso, in funzione di progressi tecnici e aziendali o necessità operative, e vengono fornite senza alcun obbligo, impegno o assunzione di responsabilità. Qualsiasi informazione, in particolare di tipo dimensionale, perché venga considerata vincolante, deve essere sempre previamente verificata con il nostro Ufficio tecnico/commerciale e confermata per iscritto in fase di conferma d’ordine, diversamente è da considerarsi fornita a carattere puramente indicativo.
